Key Features & Benefits
The DPK.V submersible pumps combine superior engineering with practical design elements:
- Vortex Impeller Technology – Ensures efficient handling of sewage and wastewater containing solids
- Compact Design – Space-saving construction ideal for building service installations
- Service-Friendly Construction – Easy maintenance access reduces downtime
- Flexible Installation Options – Free-standing on ring stand or permanent auto-coupling system
- 50Hz Operation – Designed for regional electrical specifications
- Robust Build Quality – Engineered for continuous submersible operation in harsh conditions
Applications
The Grundfos DPK.V series excels in multiple environments:
- Underground sewage collection tanks
- Residential building wastewater systems
- Commercial property drainage solutions
- Basement sump applications
- Building service pumping stations
DPK.V Standard Range – Technical Specifications
2-Pole Motor Models
| Pump Type | Product Number | Voltage / Starting Method |
|---|---|---|
| DPK.V.65.80.15.2.5.0D | 98913685 | 3 x 380-415V / DOL |
| DPK.V.65.80.15.2.5.0E | 98913686 | 3 x 220-240V / DOL |
| DPK.V.65.80.22.2.5.0D | 98913687 | 3 x 380-415V / DOL |
| DPK.V.65.80.22.2.5.0E | 98913688 | 3 x 220-240V / DOL |
| DPK.V.80.80.37.2.5.0D | 98803749 | 3 x 380-415V / DOL |
| DPK.V.80.80.37.2.5.0E | 98803750 | 3 x 220-240V / DOL |
| DPK.V.80.80.55.2.5.0D | 98803751 | 3 x 380-415V / DOL |
| DPK.V.80.80.55.2.5.0E | 98803752 | 3 x 220-240V / DOL |
| DPK.V.80.80.55.2.5.1D | 98803753 | 3 x 380-415V / Y-D |
| DPK.V.80.80.55.2.5.1E | 98803754 | 3 x 220-240V / Y-D |
| DPK.V.80.80.75.2.5.0D | 98803755 | 3 x 380-415V / DOL |
| DPK.V.80.80.75.2.5.0E | 98803756 | 3 x 220-240V / DOL |
| DPK.V.80.80.75.2.5.1D | 98803757 | 3 x 380-415V / Y-D |
| DPK.V.80.80.75.2.5.1E | 98803758 | 3 x 220-240V / Y-D |
4-Pole Motor Models
| Pump Type | Product Number | Voltage / Starting Method |
|---|---|---|
| DPK.V.65.80.15.4.5.0D | 98946548 | 3 x 380-415V / DOL |
| DPK.V.65.80.15.4.5.0E | 98946549 | 3 x 220-240V / DOL |
| DPK.V.65.80.22.4.5.0D | 98946550 | 3 x 380-415V / DOL |
| DPK.V.65.80.22.4.5.0E | 98946551 | 3 x 220-240V / DOL |
| DPK.V.80.80.37.4.5.0D | 98925411 | 3 x 380-415V / DOL |
| DPK.V.80.80.37.4.5.0E | 98925412 | 3 x 220-240V / DOL |
| DPK.V.80.80.55.4.5.0D | 98925413 | 3 x 380-415V / DOL |
| DPK.V.80.80.55.4.5.0E | 98925414 | 3 x 220-240V / DOL |
| DPK.V.80.80.55.4.5.1D | 98925415 | 3 x 380-415V / Y-D |
| DPK.V.80.80.55.4.5.1E | 98925416 | 3 x 220-240V / Y-D |
| DPK.V.80.80.75.4.5.0D | 98925417 | 3 x 380-415V / DOL |
| DPK.V.80.80.75.4.5.0E | 98925418 | 3 x 220-240V / DOL |
| DPK.V.80.80.75.4.5.1D | 98925419 | 3 x 380-415V / Y-D |
| DPK.V.80.80.75.4.5.1E | 98925420 | 3 x 220-240V / Y-D |
DPK.V Dimensional Data
2-Pole Motor Dimensions (mm)
| Product No. | Model | DIM A | DIM C | DIM V1 | DIM V4 | DIM V6 | DIM V6F | DIM Z6 | DIM Z7 | DIM Z11 | DIM Z12 | DIM Z13 | DIM Z16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 98913685 | DPK.V.65.80.15.2.5.0D | 548 | 372 | 636 | 330 | 564 | 626 | 834 | 609 | 644 | 97 | 50 | 250 |
| 98913686 | DPK.V.65.80.15.2.5.0E | 548 | 372 | 636 | 330 | 564 | 626 | 834 | 609 | 644 | 97 | 50 | 250 |
| 98913687 | DPK.V.65.80.22.2.5.0D | 568 | 372 | 656 | 330 | 564 | 626 | 834 | 609 | 664 | 97 | 50 | 250 |
| 98913688 | DPK.V.65.80.22.2.5.0E | 568 | 372 | 656 | 330 | 564 | 626 | 834 | 609 | 664 | 97 | 50 | 250 |
| 98803749 | DPK.V.80.80.37.2.5.0D | 728 | 429 | 748 | 351 | 604 | 666 | 851 | 626 | 846 | 118 | 50 | 250 |
| 98803750 | DPK.V.80.80.37.2.5.0E | 728 | 429 | 748 | 351 | 604 | 666 | 851 | 626 | 846 | 118 | 50 | 250 |
| 98803751 | DPK.V.80.80.55.2.5.0D | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803752 | DPK.V.80.80.55.2.5.0E | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803753 | DPK.V.80.80.55.2.5.1D | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803754 | DPK.V.80.80.55.2.5.1E | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803755 | DPK.V.80.80.75.2.5.0D | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803756 | DPK.V.80.80.75.2.5.0E | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803757 | DPK.V.80.80.75.2.5.1D | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
| 98803758 | DPK.V.80.80.75.2.5.1E | 886 | 429 | 858 | 351 | 604 | 666 | 851 | 626 | 1004 | 118 | 50 | 250 |
4-Pole Motor Dimensions (mm)
| Product No. | Model | DIM A | DIM C | DIM V1 | DIM V4 | DIM V6 | DIM V6F | DIM Z6 | DIM Z7 | DIM Z11 | DIM Z12 | DIM Z13 | DIM Z16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 98946548 | DPK.V.65.80.15.4.5.0D | 715 | 410 | 737 | 351 | 574 | 635 | 843 | 619 | 831 | 115 | 50 | 250 |
| 98946549 | DPK.V.65.80.15.4.5.0E | 715 | 410 | 737 | 351 | 574 | 635 | 843 | 619 | 831 | 115 | 50 | 250 |
| 98946550 | DPK.V.65.80.22.4.5.0D | 715 | 410 | 737 | 351 | 574 | 635 | 843 | 619 | 831 | 115 | 50 | 250 |
| 98946551 | DPK.V.65.80.22.4.5.0E | 715 | 410 | 737 | 351 | 574 | 635 | 843 | 619 | 831 | 115 | 50 | 250 |
| 98925411 | DPK.V.80.80.37.4.5.0D | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925412 | DPK.V.80.80.37.4.5.0E | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925413 | DPK.V.80.80.55.4.5.0D | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925414 | DPK.V.80.80.55.4.5.0E | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925415 | DPK.V.80.80.55.4.5.1D | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925416 | DPK.V.80.80.55.4.5.1E | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925417 | DPK.V.80.80.75.4.5.0D | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925418 | DPK.V.80.80.75.4.5.0E | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925419 | DPK.V.80.80.75.4.5.1D | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
| 98925420 | DPK.V.80.80.75.4.5.1E | 895 | 460 | 867 | 351 | 612 | 674 | 882 | 657 | 1003 | 108 | 50 | 250 |
Power Range
The DPK.V series is available in various motor capacities to suit different application requirements:
- 1.5 kW – Entry-level domestic applications
- 2.2 kW – Small to medium residential buildings
- 3.7 kW – Medium commercial installations
- 5.5 kW – Larger commercial buildings
- 7.5 kW – Heavy-duty commercial and industrial applications
DPK.V Accessories
Discharge Elbow Options (80mm) – For Free-Standing Installation
| Description | Part Number |
|---|---|
| JIS flange standard including coupling | 96922606 |
| DIN flange standard including coupling | 96922610 |
| ANSI flange standard including coupling | 96922614 |
| Hose connection including hose coupling | 96922618 |
Ring Stand – For Free-Standing Installation
| Description | Specifications | Part Number |
|---|---|---|
| Ring Stand (All pump sizes) | Outlet 80mm, Screws 3 x M12 x 45mm, Washers 3 x M12 | 98832022 |
| Ring Stand (2-pole pumps only, 1.5kW & 2.2kW) | Screws 3 x M8 x 35mm, Washers 3 x M8 | 98981831 |
Auto-Coupling (ADC-T) – For Permanent Installation
| Description | Part Number |
|---|---|
| JIS standard flange 80mm | 96922622 |
| DIN standard flange 80mm | 96936832 |
| ANSI standard flange 3″ | 96922630 |
| Anchor bolts for ADC-T (4 x M16 x 200mm) | 96922634 |
| Hydraulic Seal 80mm | 96936840 |
Chain with Shackle (Galvanized)
| Length | Part Number |
|---|---|
| 10 m | 96884370 |
| 6 m | 96884371 |
| 3 m | 96884372 |
Control Units (Pump Protection)
| Model | Part Number |
|---|---|
| GU01 | 96922603 |
| GU02 | 96922604 |

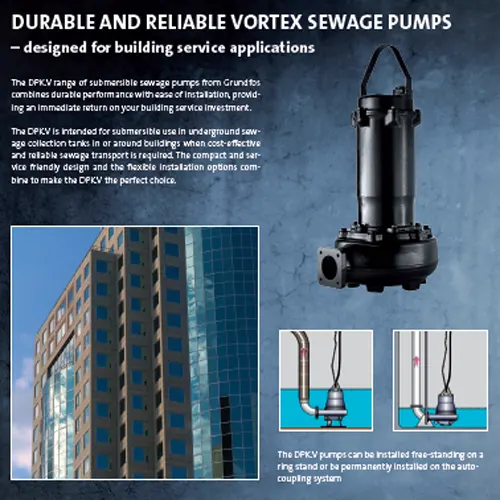

Installation Options
The DPK.V pumps offer versatile installation flexibility:
Free-Standing Installation: Mount the pump on a ring stand with discharge elbow connections available in JIS, DIN, ANSI flange standards, or hose connection configurations.
Permanent Installation: Utilize the auto-coupling system (ADC-T) with guide rails for easy pump removal and maintenance without entering the collection tank.
Performance Characteristics
The DPK.V range delivers impressive hydraulic performance:
2-Pole Models (50 Hz):
- Flow rates up to 90 m³/h
- Head range: 4m to 32m depending on model
- Available power: 1.5kW to 7.5kW
4-Pole Models (50 Hz):
- Optimized for high-head applications
- Enhanced energy efficiency
- Reduced operational costs
Why Choose Grundfos DPK.V Pumps?
Reliability: Proven vortex impeller design handles sewage with solids efficiently without clogging.
Durability: Robust construction materials ensure long service life even in demanding conditions.
Efficiency: Optimized hydraulic design minimizes energy consumption while maximizing output.
Flexibility: Multiple installation options accommodate various site requirements.
Support: As an authorized Grundfos Water Pump Dealer in Dubai, we provide complete technical support and genuine spare parts.
Buy Grundfos DPK.V Pumps in Dubai
Online Stores in Dubai is your trusted source for genuine Grundfos submersible sewage pumps in the UAE. We offer competitive pricing, fast delivery across Dubai, Abu Dhabi, Sharjah, and all Emirates, plus expert technical consultation to help you select the right pump for your application.
Browse our complete range of Grundfos Water Pumps to find the perfect solution for your domestic or commercial wastewater management needs.
