Why Choose Grundfos NB/NBG/NK/NKG Pumps?
Understanding the Grundfos End-Suction Pump Range
The Grundfos end-suction pump family consists of four distinct series, each designed for specific installation requirements:
Close-Coupled Pumps (NB/NBG)
The NB and NBG series feature a close-coupled design where the pump impeller mounts directly on the motor shaft. This configuration eliminates the need for shaft alignment during installation, reducing setup time and maintenance requirements. The NBG variant offers enhanced pressure ratings with 16-bar flanges as standard.
Long-Coupled Pumps (NK/NKG)
The NK and NKG series utilize a long-coupled configuration with a separate bearing housing. This design allows for standard and heavy-duty bearing options to meet various lifetime demands. The NKG models provide higher flow capacity up to 1500 m³/h with maximum head reaching 150 meters.
Technical Specifications – Grundfos NB/NBG/NK/NKG Series
| Parameter | NB | NK | NBG | NKG |
|---|---|---|---|---|
| Maximum Flow Rate | 1100 m³/h | 1500 m³/h | 1100 m³/h | 1500 m³/h |
| Maximum Head | 105 m | 150 m | 150 m | 150 m |
| Liquid Temperature | 0°C to +140°C | 0°C to +140°C | 0°C to +140°C | 0°C to +140°C |
| Maximum Pressure | 10/16 bar (1600 kPa) | 10/16 bar (1600 kPa) | 16 bar (1600 kPa) | 16 bar (1600 kPa) |
Key Features and Design Advantages
Construction and Materials
- Cast Iron Construction: Robust pump housing designed for demanding industrial environments
- All-Stainless Steel Shafts: Enhanced corrosion resistance for extended service life
- Stainless Steel Stub-Shaft Design: Available on close-coupled models for improved durability
- O-Ring Seal: Between pump housing and cover eliminates leakage risk
Sealing Options
- Single Mechanical Seal: Standard configuration for clean water applications
- Double Mechanical Seal: For handling various liquid types requiring additional containment
Flange Standards
- 10-bar Flanges: EN733 designated applications
- 16-bar Flanges: ISO2858 designated applications
Motor Technology
- Grundfos Blueflux® Motors: Best-in-class energy efficiency
- IE2/IE3/IE4 Efficiency Classes: Meeting or exceeding international motor efficiency legislation
- MGE Variable Speed Drive: Integrated frequency converter for maximum operational efficiency
- Motor Supports Included: Standard delivery for pumps above 7.5 kW for easy installation
Application Areas
The Grundfos NB/NBG/NK/NKG pump series serves diverse industrial and commercial applications across the UAE and Middle East region:
| Application | Description |
|---|---|
| Water Supply | Municipal water distribution, building water supply systems |
| Heating Systems | District heating networks, HVAC hot water circulation |
| Industrial Pressure Boosting | Manufacturing facilities, process water systems |
| Industrial Liquid Transfer | Chemical processing, food and beverage production |
| Air Conditioning | Chilled water systems, cooling tower circulation |
| District Cooling | Centralized cooling plants, large-scale HVAC installations |
| Irrigation | Agricultural water supply, landscape irrigation systems |
| Water Intake | Raw water intake, desalination pre-treatment |

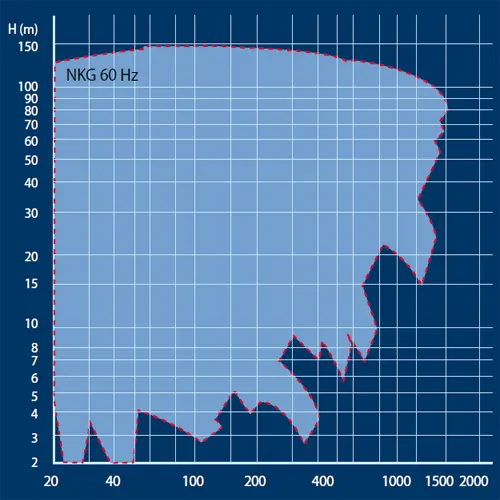

Performance Chart – NKG 60 Hz Operating Range
Flow Range (Q): 20 m³/h to 2000 m³/h
Head Range (H): 2 m to 150 m
The performance envelope covers a wide operational range, allowing pump selection for virtually any flow and head combination within the specified limits. The optimized hydraulics ensure high efficiency across the entire operating range.
Benefits of Choosing Grundfos End-Suction Pumps
Energy Efficiency
Every pump in the NB/NBG/NK/NKG range can be equipped with Grundfos Blueflux® labeled motors. This technology represents the pinnacle of energy-efficient motor design, helping facilities reduce power consumption and operating costs while meeting environmental regulations.
Outstanding Reliability
Backed by comprehensive engineering expertise and premium material selection, these pumps deliver consistent performance year after year. The robust cast iron construction withstands harsh industrial environments where lesser pumps would fail.
Complete Product Range
From close-coupled to long-coupled configurations, cast iron to stainless steel variants, the Grundfos end-suction range offers solutions for every requirement. This flexibility ensures you find the perfect pump for your specific application.
Flexible Configuration
Each pump can be customized and optimized for seamless operation in any application. Whether you need specific seal types, flange ratings, or motor configurations, the modular design accommodates diverse requirements.
Global Service Network
As a worldwide manufacturer, Grundfos provides delivery, service, and commissioning support across all continents. Local expertise in your language ensures smooth installation and ongoing maintenance.
Stainless Steel Variants
For applications with high corrosion risk, Grundfos offers stainless steel versions of the NB and NK pump series. These variants provide enhanced chemical resistance for aggressive liquids while maintaining the same excellent hydraulic performance as the cast iron models.
Why Buy from Online Stores in Dubai?
As the trusted Grundfos Water Pump Dealer In Dubai, Online Stores in Dubai offers:
- Genuine Grundfos products with manufacturer warranty
- Competitive pricing on all pump models
- Technical consultation for pump selection
- Fast delivery across UAE
- After-sales support and spare parts availability
- Professional installation guidance
Order Your Grundfos Pump Today
Whether you need a close-coupled NB pump for a compact installation or a high-capacity NKG pump for industrial water transfer, our team helps you select the right model for your requirements. Contact Online Stores in Dubai for pricing and availability on the complete Grundfos NB/NBG/NK/NKG range.
